OVERVIEW

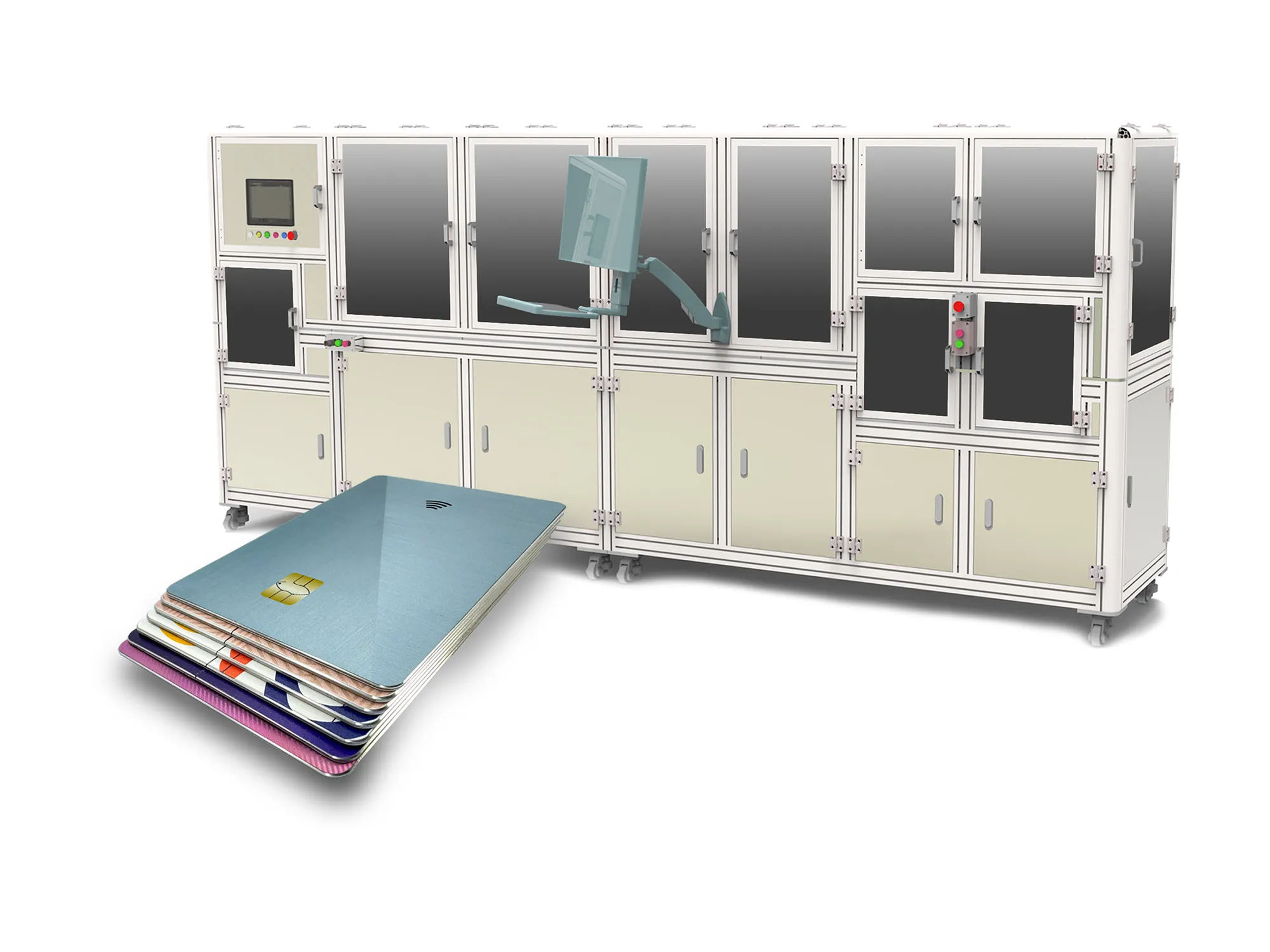

The RD-AOI-MC2000 is an automated visual inspection system designed for metal card quality control. It provides high-precision, high-speed parallel inspection, automatic defect detection and measurement, and scalable system configuration.

The system inspects and classifies metal cards by detecting defects in printed graphics, surfaces, dimensions, and anti-counterfeiting features, while also supporting operator intervention. It features an advanced imaging system, a built-in model library for rapid template switching, multiple input/output magazines for continuous production, and small-sample-set deep-learning models for rapid training.

OPERATION FLOW

FEATURES

• Advanced Imaging System

Uses an advanced imaging system to meet flexible inspection requirements.

• Model Library Function

A built-in template library enables rapid switching between inspection templates.

• Continuous Production

Multiple input/output magazines enable continuous production without machine stoppages.

• Small-Sample-Set Deep-Learning Models

Enables rapid modeling training using a limited number of sample images.

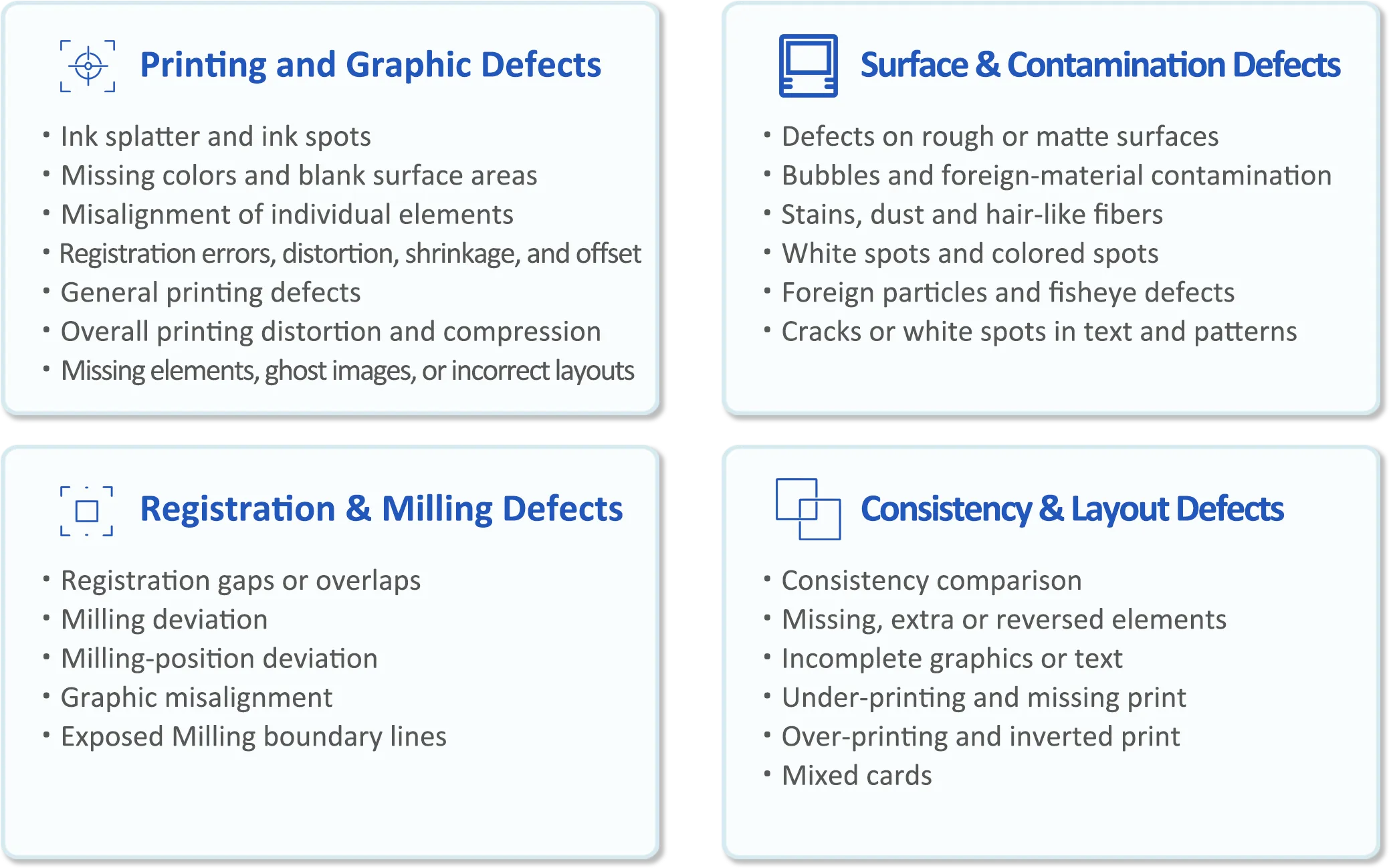

INSPECTION ITEM

SOFTWARE INTERFACE

IMAGING SYSTEM SPECIFICATION

MACHANICAL SPECIFICATION

•  Metal card manufacturers requiring automated, high-speed visual inspection for quality control.

•  Producers needing to detect printing, surface, registration, milling, and consistency defects.

•  Factories looking to replace manual inspection with high-precision automated systems.

•  Clients requiring continuous production with multiple input/output magazines and automatic sorting.

•  Businesses seeking scalable inspection solutions with rapid template switching and deep-learning modeling.

• Advanced Imaging System

Uses an advanced imaging system to meet flexible inspection requirements.

• Model Library Function

A built-in template library enables rapid switching between inspection templates.

• Continuous Production

Multiple input/output magazines enable continuous production without machine stoppages.

• Small-Sample-Set Deep-Learning Models

Enables rapid modeling training using a limited number of sample images.

•  Automated Quality Control: Replaces manual inspection with high-precision, high-speed automated inspection.

•  Comprehensive Defect Detection: Detects printing, surface, contamination, registration, milling, consistency, and layout defects.

•  High Throughput: Up to 5,000 cards/hour with continuous production capability.

•  Advanced Imaging: 12 MP color and 2 MP monochrome cameras with 40 μm and 80 μm resolution.

•  Rapid Model Training: Small-sample-set deep-learning models enable quick setup for new card designs.

•  Scalable & Flexible: Supports customizable inspection requirements and scalable configuration.

•  Continuous Production: Multiple input/output magazines and automatic sorting minimize downtime.
