Presentation: One new multifunction handy counter for colorful cards and transparent card
Advantage: All aluminum alloy design: wearable and shock proof design, Accurate Counting, Easy operation
Application: Card Manufacturer, Card Issuer, Card Personalization center etc
OVERVIEW
CM-1 is a newly developed handheld card counter to count various colored core card and transparent card. It can work for above 0.45 mm thickness plastic cards including IC card, ID card, Embossing card and compatible for PVC card, PET card, ABS card, Metal card, Paper board card etc.
Equipped with high-speed processor, two high-precision optical sensors and precise logic analysis circuit, it can achieve high-efficiency counting. Every card manufacturer and issuer will need it.
FEATURES
• Humanized menu design & Language switching function
• Smart LCD display: display single/total count, display battery power
• The counter will stay in standby mode in inactive for 30 seconds and restart pressing “SCAN KEY”
• All aluminum alloy & streamlined design: wearable and shockproof, reducing scratches caused by contact with the card surface
• General high capacity battery: strong endurance, and equipped with the latest charging interface TYPE-C
• The charge protection design protects the counter during charging

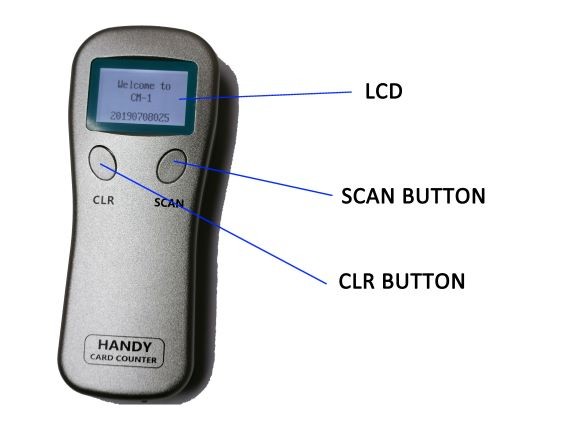

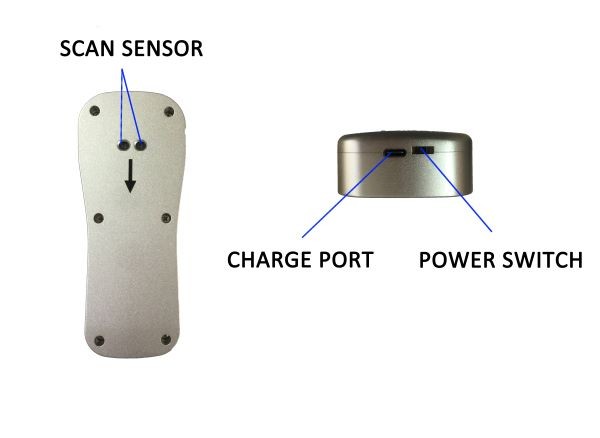

PRODUCT DIAGRAM
SPECIFICATIONS
Card Material |
• All regular plastic cards (ABS, PVC, PC PET, etc.), paper board cards, metal cards incl.(depending on material and die-cutting burr) |
Card Thickness |
• 0.45mm ~ 1.5mm |
Card Color |
• White core card, black card, many types of colored core, and transparent cards |
Power Supply |
• Battery model:103450 |
Working Temperature |
• 10 ~ 40℃ |
Working Humidity |
• 30% ~ 90% |
Single Counting Capacity |
• 1 ~ 2000 pcs |
Maximum Accumulation |
• 99,999 cards |
Dimension |
• L160mm xW66mmxH30mm |
Net Weight |
• 280 g |
APPENDIX
The sensors of card counter have different sensitivity to different colors & materials and the work theory of the portable counter is related to light reflection. So, there is no one portable counting device that can count all types of colored core cards and transparent cards. In order to help you choose the proper card counting device, we recommend you to read following remarks and test results before procurement.
Remarks:
1. For these special cards including black cards, transparent cards, multi-layer cards and some rare cards, please send sample cards for the test.
2. Multi-layer cards (including SPS cards): There's a transparent pet/pvc sheet (eg: Aluminum Etching Antenna) in the middle as enclosed. This kind of card is complicated. Please send samples. See below picture of SPS card.

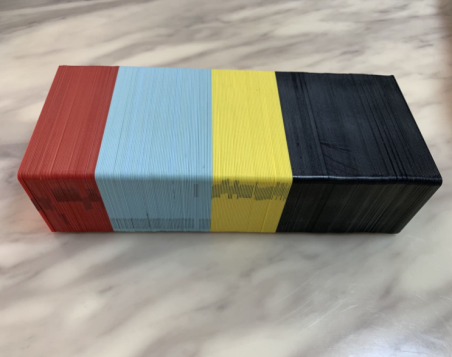

ITEM |
VIDEO | TEST RESULT |
White Core Cards |
https://youtu.be/Pi9ie1K0b4M | GOOD |
Red Core Cards |
https://youtu.be/Pi9ie1K0b4M | GOOD |
Indigo/Light |
https://youtu.be/Pi9ie1K0b4M | GOOD |
Pale/Dark |
https://youtu.be/Pi9ie1K0b4M | GOOD |
Yellow Core Cards |
https://youtu.be/Pi9ie1K0b4M | GOOD |
Black Core Cards |
https://youtu.be/Pi9ie1K0b4M | Good (Need to test sample cards) |
Metal Cards |
https://youtu.be/p9pXyKwM-lk | Good (Need to test sample cards) |
Transparent/Translucent |
N/A | Need to test sample cards |
Multi-layer card including: SPS card, COM, Flex bump Soldiering, etc. |
N/A | Need to test sample cards |
Other Colorful Cards |
N/A | Undetermined |
• Humanized menu design & Language switching function
• Smart LCD display: display single/total count, display battery power
• The counter will stay in standby mode in inactive for 30 seconds and restart pressing “SCAN KEY”
• All aluminum alloy & streamlined design: wearable and shockproof, reducing scratches caused by contact with the card surface
• General high capacity battery: strong endurance, and equipped with the latest charging interface TYPE-C
• The charge protection design protects the counter during charging
Card Material |
• All regular plastic cards (ABS, PVC, PC PET, etc.), paper board cards, metal cards incl.(depending on material and die-cutting burr) |
Card Thickness |
• 0.45mm ~ 1.5mm |
Card Color |
• White core card, black card, many types of colored core, and transparent cards |
Power Supply |
• Battery model:103450 |
Working Temperature |
• 10 ~ 40℃ |
Working Humidity |
• 30% ~ 90% |
Single Counting Capacity |
• 1 ~ 2000 pcs |
Maximum Accumulation |
• 99,999 cards |
Dimension |
• L160mm xW66mmxH30mm |
Net Weight |
• 280 g |
Services before Sales
Services on Purchasing
Services after Sales
• Count colorful cards and white card at the same time.
• Upload the counting results to PC system.
• Stable Function
• High quality
• Competitive price
• Easy to operate
• Humanized service
Q: Whether Dual interface cards could be counted?
A: If dual interface cards edge is one layer only, it could be counted, if there is a pet or pvc within the cards, it seems several layer, it could not be counted.
Q: What cards can this counter count?
A: Size: ISO Standard,
Color: white cards and colorful cards
Material: Paper board cards, Plastic cards, Metal cards
Q: Do you need to test the samples?
A: For some special cards, we advise to test the sample cards including, dual-interface cards, black cards etc
