Lamination Machine RD-LM42-52YL
Presentation: Amazing & Innovative Design Semi-Auto Laminator
Advantage: Easy Operation, Durable 7x24 Concepts, Mature Tech
Application: Plastic/Smart Card, Pre-lam Inlay Manufacturer
OVERVIEW
The machine is specially designed for production of pre-laminated sheet inlay and contactless card, also suitable to plastic card and contact smart cards’ production.
Thanks the advanced laminating technology and durable performance, this machine has independent heating and cooling tower, PLC control, double liquid compressor pump plus 4 hydraulic press tanks. The aluminum alloy press board has efficient & uniform heating/cooling spread results, the solid mechanical performance as well. The system can preset 10 sets parameters for your easy operation.
The customized machine’s dimension and requirement is available on request.
The Chinese 2nd Generation ID card which is the biggest ID card project in the world has adopted our mature lamination solutions. Now this machine occupied the major market share in China smart card manufacturing industry.
APPLICATION
Card Manufacturer
FEATURES
• Support material: PVC, ABS,PETG, PC
• Available card: RFID Card, ID card, Plastic & Smart card
• Wonderful lamination result.
The balanced, fast heating/cooling system makes the final laminated sheet ultra-plain, also very limited shrinking rate of material & sheet.
• Advanced cooling system
Cooling water will be cycled in the cooling press board, and cooling speed is controlled by auto system. There are water-pipe ports connected to cooling press board.
• Advanced heating system
Use advanced heating rod. There are 6 heating rods in each press board. PLC controls each layer’s temperature precisely. The accuracy is ±1℃, and the heating temperature up to 200 °C
• Easy operation and simple maintenance
All system controlled by PLC and operated on touch screen. All operation parameters set on the screen, system can store 10 presetting parameters as well. Easy operation and simple maintenance is the highlight.
• Advanced hydraulic press control system
The pressure range is 0-20Mpa (200 Bar), controlling precision is 0.1MPa (1 Bar). In each press tower, there are 4 hydraulic cylinders working together and pressures controlled by 2 motor and hydraulic pumps. The pressure control is balanced and precisely (±1bar) via sensors & PLC working. The key parts of hydraulic system are from global top-class supplier, can guarantee system with high reliability and stability.
• Remarks
Customer needs to deploy the water cooling system. There are water pipes' connecting ports on the machine.

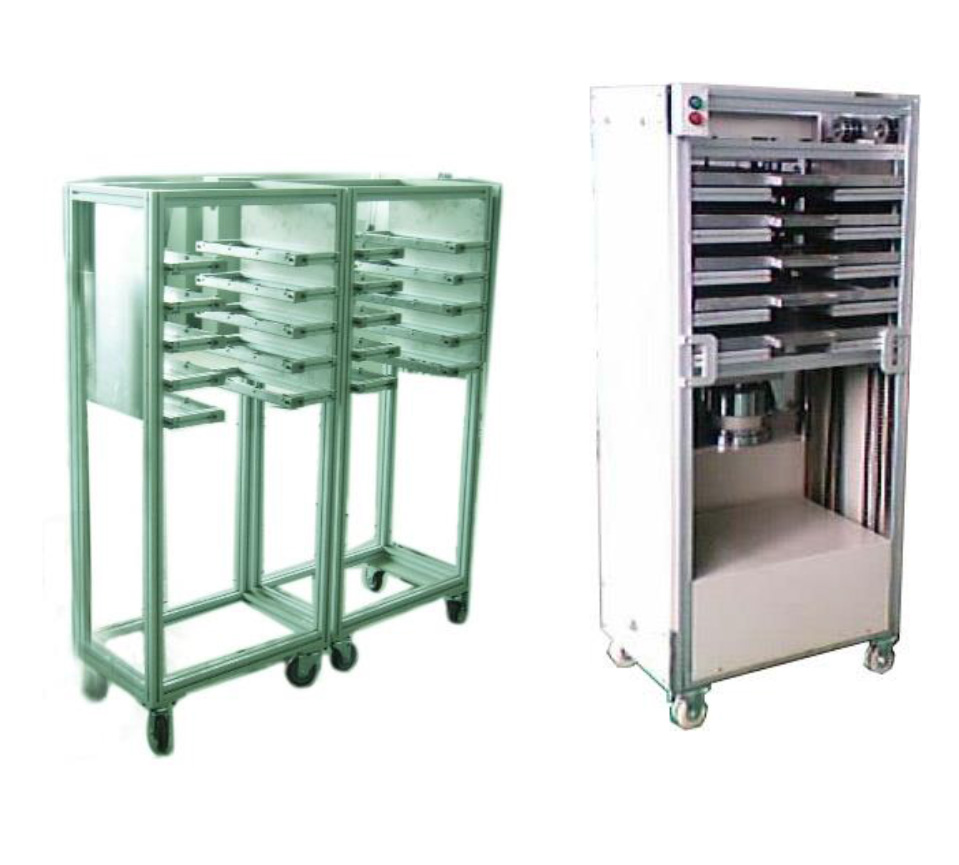

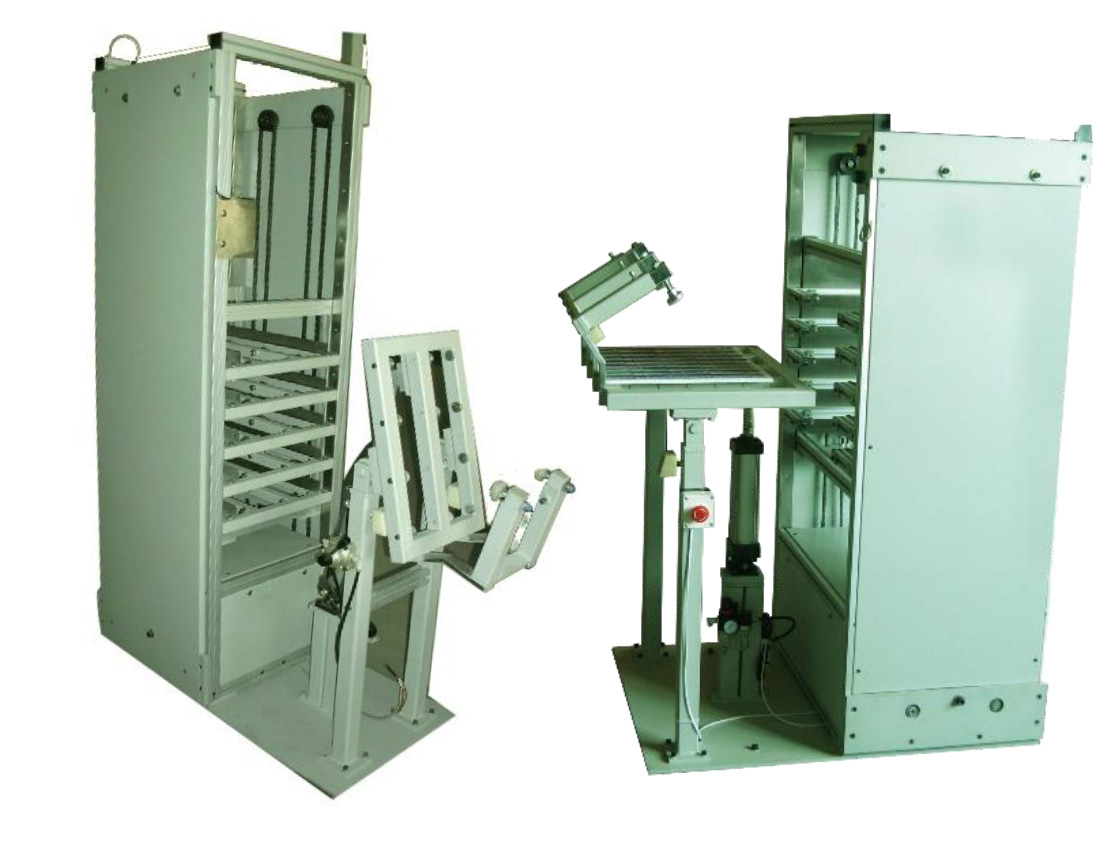

We can provide you the optional Material Loading System as bellowing brief illustrations. Please contact us for more detailed proposal.
SPECIFICATIONS
|
Press Area |
• 420mm×520mm |
|
Max Lamination Area |
• 400mm×500mm, available to 5×5, 3x7, 3x8, 4×8 sheet layout. |
|
Press Board |
• 6 aluminum alloy boards for both heating and cooling press tower |
|
Opening Layers |
• 5 opening layers for heating press tower and 5 opening layers for cooling |
|
Run-rate |
• Up to 6400 cards/hour, depends on sheet layout |
|
Hydraulic System |
• 1~200 Bar(20Mpa), the adjustable precision is 1 Bar(0.1 Mpa) |
|
Heating System |
• Method: Separate electric hot rod |
|
Control System |
• Touch screen, PLC system. All parameters adjustable on touch screen |
|
Lamination Temperature |
• Up to 200 °C, adjustable and precision is ±1 °C which is measured cover all |
|
Lamination Time |
• Setting range 0~99 minutes which could be adjustable |
|
Power Supply |
• 3 Phase AC380V ,50/60 Hz, 20Amp |
|
Power Consumption |
• 30 KW |
|
Net Weight |
• 2300 Kgs |
|
Profile Dimension |
• 2500mm(L)×1400(W)×1700mm(H) |
|
Lead Time |
• 25-30 working days excluding the training days after PO confirmed |
|
Training Time |
• 2 days in manufacturer. |
