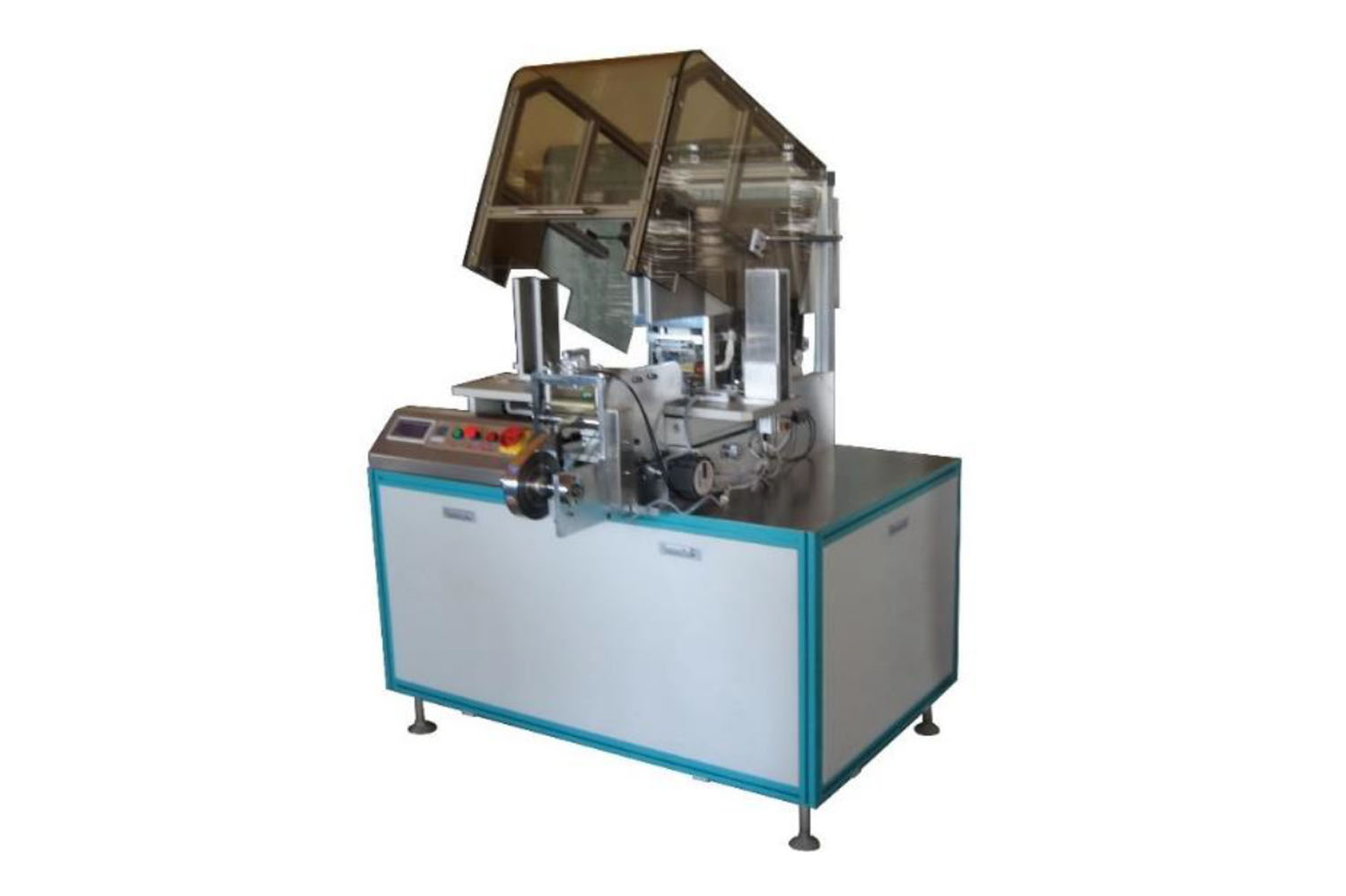

Hologram/S.P Hot-Stamping Machine RD-HM12C
Presentation: High Speed and accurate hologram hotstamping machine
Advantage: High Speed, Accuracte, Stable and Easy Operation
Application: Card manufacturers
OVERVIEW
Hot-Stamping machine is the key equipment for the plastic cards production on the Hologram or Signature Panel making process. Combined advanced mechanical technology and design, now we are offering you the top-class Hot-Stamping system according to your request!
The proven quality leads the most banking card manufacturers from China are using this machine instead of foreign brands now. More overseas card factories are benefitting from it.
We can customize the different shape hot-stamping head for your various holograms and signature panel production, not only for Visa/MasterCard cards.
APPLICATIONS
Plastic/Smart Card Manufacturer
FEATURES
• Card loading by suction pulling which eliminate the scratches.
• Card surface is quite even after hologram/signature panel’s production.
• Very accurate positioning for hologram foil/signature panel, control by X, Y Axis
• Step motor for material loading, repeatable stamping interval to reduce the waste material.
SPECIFICATIONS
|
Pressure/Air Supply Requirement |
• 0.6MPa |
|
Power Supply |
• 3 Phase AC 380V 50Hz |
|
Power Consumption |
• 1.5 KW |
|
Throughput |
• >3000 PCS/ Hour |
|
Material |
• ISO Standard Card/CR80 |
|
Stamping Tolerance Lengthwise |
• ± 0.10 mm |
|
Stamping Tolerance Narrow side |
• ± 0.10 mm |
|
Stamping Size |
• 85×50mm |
|
Range Of Temperature |
• Up to 200℃ ±2℃ |
|
Capacity Of Magazine |
• 500pcs |
|
Feeding Control |
• PLC+ Step Motor+ Optical Sensor For Precise Position |
|
Position Accuracy |
• ± 0.1 mm |
|
Net Weight |
• 650 kgs |
|
Dimension |
• 1400mm (L)×1400mm (W) ×1100mm (H) |
|
Warranty |
• 1 Year |
• Adjustable hot stamping time.
• Card loading by suction pulling which eliminate the scratches.
• Card surface is quite even after hologram/signature panel’s production.
• Very accurate positioning for hologram foil/signature panel, control by X, Y Axis
• Step motor for material loading, repeatable stamping interval to reduce the waste material.
|
Pressure/Air Supply Requirement |
• 0.6MPa |
|
Power Supply |
• 3 Phase AC 380V 50Hz |
|
Power Consumption |
• 1.5 KW |
|
Throughput |
• >3000 PCS/ Hour |
|
Material |
• ISO Standard Card/CR80 |
|
Stamping Tolerance Lengthwise |
• ± 0.10 mm |
|
Stamping Tolerance Narrow side |
• ± 0.10 mm |
|
Stamping Size |
• 85×50mm |
|
Range Of Temperature |
• Up to 200℃ ±2℃ |
|
Capacity Of Magazine |
• 500pcs |
|
Feeding Control |
• PLC+ Step Motor+ Optical Sensor For Precise Position |
|
Position Accuracy |
• ± 0.1 mm |
|
Net Weight |
• 650 kgs |
|
Dimension |
• 1400mm (L)×1400mm (W) ×1100mm (H) |
|
Warranty |
• 1 Year |
