Auto Card Punching Machine Manufacturer

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Overview

OVERVIEW

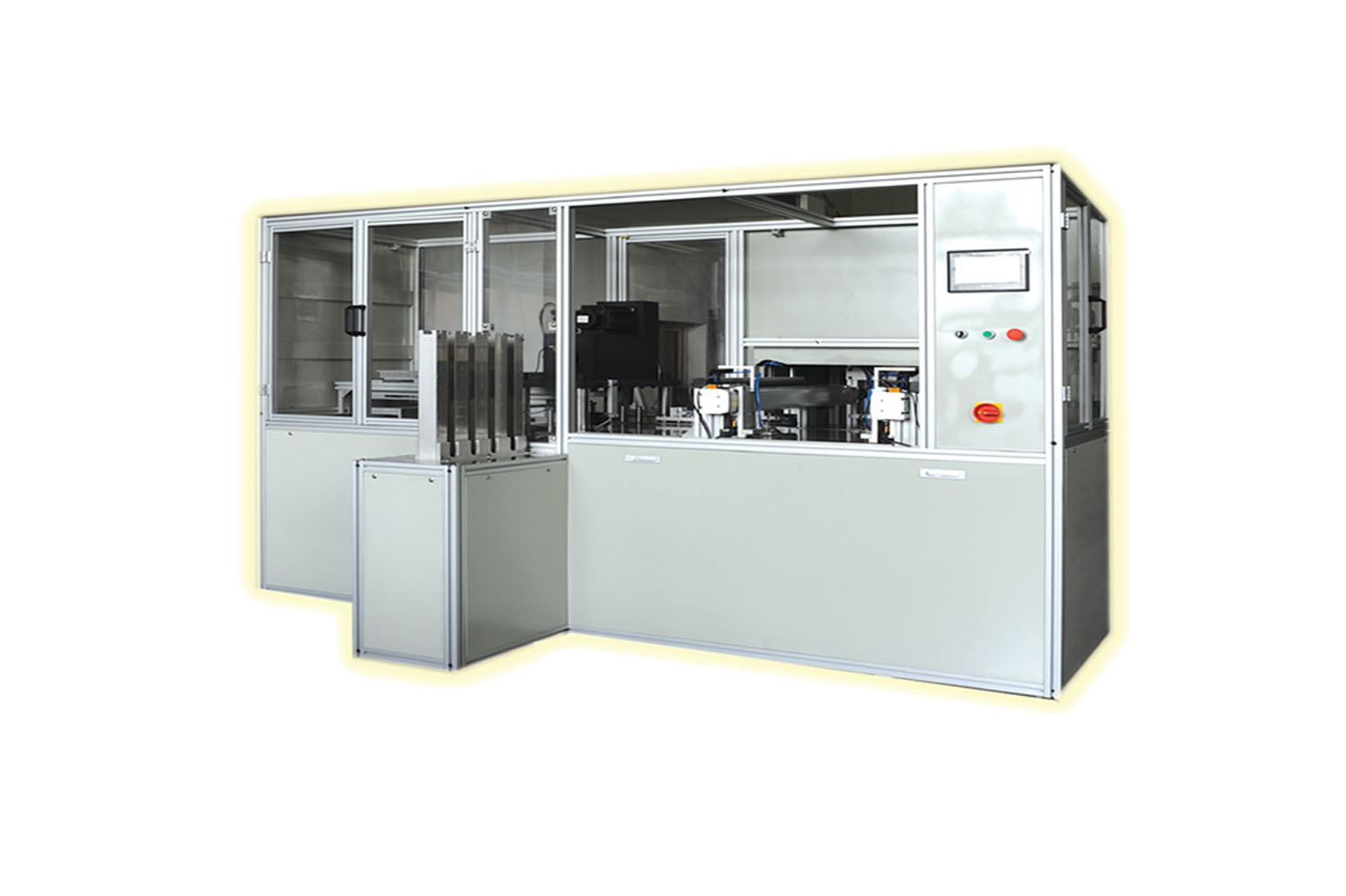

This machine is used for punching the plastic sheets into individual cards after lamination.

PLC control system, automatic sheet location position and double feeder & output system are applied in machine.

The feeder is automatic and adapts to a batch of sheets. The punching motor adopts high power serve driver.

The machine applies gapless internal ball screw to feed the sheets to ensure high sheets-feed accuracy which is within ±0.05mm. The machine also applies the high standard mark sensor to coordinate the step motor which realizes the Y axis direction feed.

All the cards punching by this machine are up to the ISO standard by equipping with high accurate punching die. The custom & durable punch die is also a highlight.

FEATURES

•   Auto sheets uploading moduleAuto sheets uploading module

•   Durable 24/7 industry concept for the machine

•   2 models for blank or printed card punching operation.

•   Reliable punching die performance and long working life.

•   Precise optical sensors will ensure the precise sheet positing before punching.

•   Advanced Servo driven system makes the sheet feeding precisely when punching　

•   Deploy one set punching die in machine which could be customized likes 3 or 4 cards

•   Easy operation and maintenance. System controlled by PLC and operated by touchable screen. All the operation parameters set on the screen.

•   2 output cards magazines with auto-moving function makes punching job easily. When one will be full, another one will move to receive the cards falling.

TYPICAL LAYOUT

SPECIFICATIONS

Card Material	• PVC, ABS, PET, PETG
Available Card	• Plastic, IC and ID card
Sheet Size	• Thickness: 0.3 ~ 1.0mm • Length and width could be customized
Sheet Layout	• Popular format is 3×7, 3×8, 5×5, 4×8
Control Method	• PLC control + Servo system
Dimensions	• 2300mm(L)×1480mm(W)×1850mm(H)
Net Weight	• 1200 kgs
Air Pressure	• 0.6-0.7MPa/cm²
Power Supply	• AC380V, 50Hz
Power	• 5KW
Capacity	• 20,000 PCS/hour
Delivery Lead Time	• 45 working days excluding the training days.

Typical Client Needs

A. The Machinery Function

To punch single card from the big sheet like 3*8, 4*8, 5*5, 6*8, etc. Support half sheet cut function.

B. Meet Client’s Requirements.

Besides card punching process, we may also help for doing resharpening/regrinding or even new mold for your punching machine!

Photo & Video

TYPICAL LAYOUT

Features

•   Auto sheets uploading moduleAuto sheets uploading module

•   Durable 24/7 industry concept for the machine

•   2 models for blank or printed card punching operation.

•   Reliable punching die performance and long working life.

•   Precise optical sensors will ensure the precise sheet positing before punching.

•   Advanced Servo driven system makes the sheet feeding precisely when punching　

•   Deploy one set punching die in machine which could be customized likes 3 or 4 cards

•   Easy operation and maintenance. System controlled by PLC and operated by touchable screen. All the operation parameters set on the screen.

•   2 output cards magazines with auto-moving function makes punching job easily. When one will be full, another one will move to receive the cards falling.

Specification

Card Material	• PVC, ABS, PET, PETG
Available Card	• Plastic, IC and ID card
Sheet Size	• Thickness: 0.3 ~ 1.0mm • Length and width could be customized
Sheet Layout	• Popular format is 3×7, 3×8, 5×5, 4×8
Control Method	• PLC control + Servo system
Dimensions	• 2300mm(L)×1480mm(W)×1850mm(H)
Net Weight	• 1200 kgs
Air Pressure	• 0.6-0.7MPa/cm²
Power Supply	• AC380V, 50Hz
Power	• 5KW
Capacity	• 20,000 PCS/hour
Delivery Lead Time	• 45 working days excluding the training days.

Why Buy It

Advantaged Location & Powerful Sense Of Mission
RSID Solutions is a professional machinery & ID solutions provider from Shanghai, a member of RealSmart Group Company founded in 2005. And Shanghai is a dynamic growing prosperity of the city, is China's largest commercial and financial center; is also the Western Pacific region important international port city. Its extensive contacts within and outside the transport, communications more developed, is attracting more and more attention to the eyes.

RSID Solutions aims to be a world class provider from China on cards manufacturing, application and ID solutions! Working with authorized top-level players, our global network will always be at your tailor-made service before & after sales, V.A.S as well.

Thanks for 15-years’ experience and numerous users’ trust, the most top players in card industry are using the machines & solutions which we highly recommended.

Whatever you are card & RFID manufacturer, personalization center or issuer, you will get reliable services & abundant resources here!

Strong Key Partners
Leading technical provider from China

• Secure ID & E-Passport

• Banking Machine

• E-Payment System

• Rail transit AFC

☆ More than 18 years professional service experience for global customers

Proven By Numerous Users

Professional Team
A Common Goal: To be a world class service provider for card/RFID making machines and ID solutions; to promote & accelerate the influence of machinery & ID Solutions made in China to global Smart Cards and RFID industry.

Abundant skills: Bachelor or above degree, mechanics or trade related major.

Smooth Information Exchange

Spirit & Enthusiasm: experienced young team with passion are ready for any challenge and opportunity. We will reply your inquiry within 24 hours and can afford you consultation for 24 hours of 7 days in the process of sale and after service by phone or mail. We will support you for advisory opinion in purchasing, explanation in various technical problems and reliable supply in technique support.

Values
• Customers are our employers, for whom we solve the problem and create more values abidingly.
• Employees are our best wealth, for whom we continuously widen the development platform and expand the space of survival.
• Partners are our business foundations, for whom we make more opportunities and benefit multi-win persistently.
• Society is our survival land to which we contribute by making efforts to improve day by day, and industry development as well.

Other Advantages
• Adequate Supply
• Attractive Price
• Customized Service
• More Than 10 Oversea Engineers Standby in 7*24 Hours

Reference & Feedback

Asia:


Europe:


North America：

South America：


Africa：

Oceania：

Special：

Service & Support

Services before Sales

Reply your inquiry within 24 hours.
Communication by email.
Welcome you visiting our factory and final users in China.
Help for VISA application and Invitation Letter issuing.
We afford you consultation for 24 hours of 7 days in the process of sale and after service by phone or mail. We will support you for advisory opinion in purchasing, explanation in various technical problems and reliable supply in technique support.

Services on Purchasing

Communication by email.
Welcome you visiting our factory and final users in China.
Help for VISA application and Invitation Letter issuing.

Services after Sales

Online Support, 24 hours feedback once got the email
Enough Spare Parts Preparation for you…
Engineer to customer’s site for training & repairment
Our equipments have 12 months for quality guarantee after sale. If the equipments do not work because of self cause, we will do free service and change the damaged spare parts.
We will do life-long maintenance for all of our sold equipments. After quality guarantee period, if you can not maintain the equipments by self, we are under an obligation to go to work place and assist you to make maintenance. The cost of spare parts as well as expenses of traveling and man-hour of worker will be negotiated separately. Spare parts will be supported whether during guarantee period or not.
After have finished maintenance, our service engineer will do training for the operators in plenty of time so that operators can be ensured to independently make operation, debugging and daily plant maintenance.

FAQ

Q: In your machine: We would need option to OFF cutting process in your AS12EA machine. This is because we may also feed 300 x 485 / 290 x 485mm sheet size and punch directly by 3x7 / 3x8 layout.

A: We had this option. It can be done by software control.

Below are the expectation

Machine	RD-AS12EA	RD-PM12E
Feeding size (mm)	• 600 x 485 / 580 x 485 / 300 x 485 / 290 x 485	• 300 x 485 / 290 x 485
Cutting (mm)	• 300x 485/ 290 x 485 / 0x0 (Off mode)	—
Punching layout	• 3 x 7 / 3 x 8	• 3 x 7 / 3 x 8
Speed (cph)	• 12000 - 18000	• 12000 - 14000

Clarification Required:

Q: For this cutting activity we need to know how the cutting is recognized ?

A: It's recognized by the help of fixed cylinder to positioning and cutting.

Q: Is there any sensor marks to be printed on sheet for cutting ?

A: We plan to not use the sensor mark for recognization. The sheet would be cut from the middle by the stock stop group A and fixed cylinder, and the tolerance would be only about 0.1-0.2mm.

Q: Also can the operator be able to define the sheet size for cutting?

A: The sheet size for cutting is defined by the software, so the operate is not able to define it.

General FAQ

Q: What are my payment options?

A: We accept payment by L/C, T/T, Western Union. Sorry while credit card is not available nowadays.

Q: What are my shipping options?

A: Shipping via your courier account. Or shipping via our DHL, FedEx, UPS, airline account, customer is responsible for freight.

Commercial FAQ

Q: How to check the shipment status?

A: Our sales representative will provide you the tracking number once after your goods be shipped out, also our logistic personnel will follow up the transport status till you receive your cargos successfully.

Q: What is the warranty policy?

A: We pay full responsibility if customer found quality problem in our products.

Warranty of machine is 1 year excluding artificial damage.
Warranty of consumable product is be defined according to the difference of product properties, our sales representative will state it clearly before you purchase.

Full Auto Card Punching Machine RD-AS12EA
